1． Introduce

XJP600 polarizing microscope is utilized polarizing light to observe and research the matter which have double refraction features, enable to observe in single polarizing, orthogonal, iconoscope. It can be applied in geology, chemicals, physic and leech Dom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demo.

Features

▲Adopt infinity optical system.

▲Infinity with strain-free plan achromatic objectives, the field of view is widely and clear.

▲Wide-field plan eyepieces: field number Ф22mm.

▲Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm

▲Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently

▲Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener.

▲Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.

2． Structure

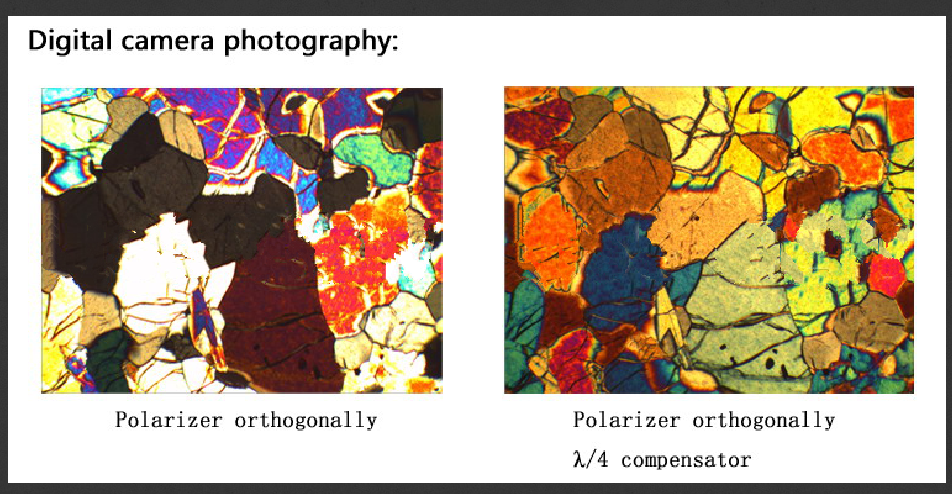

3． Image


Specification		XJP600
Optical System	Infinite Plan Optical System F=200mm	●
Eyepiece tube	Trinocular is inclined 30? and enable to shoot in 100% light flux.	●
Eyepiece	Wide field WF10X=22mm	●
Eyepiece	Dividing eyepiece(field number= 22mm) 0.10mm/Div	●
Nosepiece	Quadruple (the center of nosepiece is adjustable )	●
Nosepiece	Quintuple(Backward ball bearing inner locating)	○
Objective	Strain-free plan achromatic objective	●
	PL 4X/0.10 WD=19.8 mm	●
	PL10X/0.25 WD=5.0 mm	●
	PL 40X/0.65(S) WD=0.66 mm	●
	PL 60X/0.80(S) WD=0.45 mm	●
	PL 20X/0.40 WD=8.8mm	○
	PL 60X/0.80 WD=0.46mm	○
Stage	Rotatable stage, diameter \|μ150mm, 360° graduated (in 1° increments), minimum vernier division is 6' , center adjustable and with tightener.	●
Stage	Moving range: 30mmX25mm	○
Focus system	Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.	●
Illumination	6V30W halogen, brightness enable control	●
	Rotatable 360°, have 0,90,180,270 scale?￡	●
	Abbe condenser N.A. is 1.25 and add iris diaphragm	●
Intermediate attachment	Integrated analyzer can be switched to normal or polarizing observe freely, enable 0~90° rotated and minimum vernier division is 12'.	●
	Puller type bertrand lens and center adjustable.	●
	\|?, \|?/4 and quarts wedge compensator.	●
Compensator	\|?, \|?/4 and quarts wedge compensator.	●
C-Mount	0.4X	○
	0.5X	○
	1X	○
	0.5X with dividing 0.1mm/Div	○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
